Original price was: ₹18,540.00.₹16,298.75Current price is: ₹16,298.75.

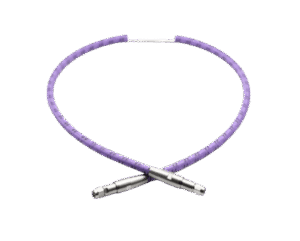

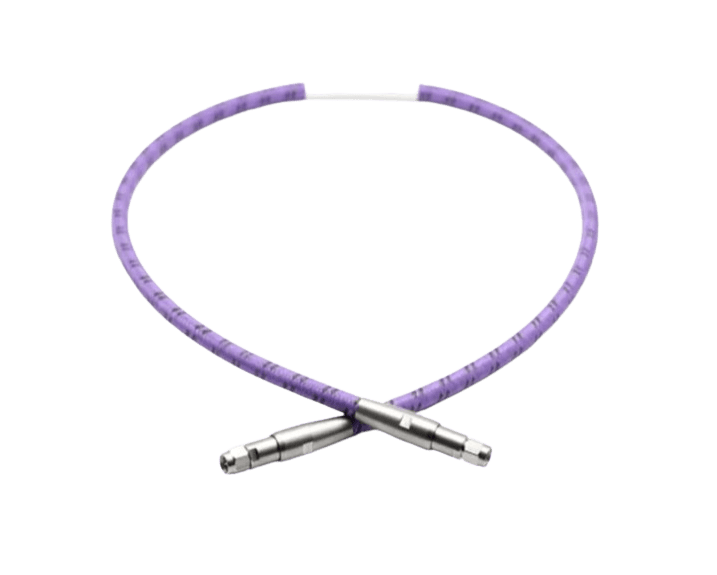

A SMA Male to SMA Male Millimeter Wave Test Cable Assembly with a frequency range of up to 26.5 GHz. It’s ideal for testing and measurement applications.
This SMA Male to SMA Male Millimeter Wave Test Cable Assembly is a professional-grade component designed for testing and measurement applications. It features an SMA male connector on both ends, and a frequency range of up to 26.5 GHz. This cable is an essential tool for testing, measurement, and troubleshooting RF systems. The high-quality construction ensures minimal signal loss and long-term durability.
| Brand | RF CONNECTOR HOUSE |
|---|---|
| Inner Conductor | Silver Plated |
| Insulation | LDPTFE – 3.80mm |
| Inner Shield | Silver plated copper wire – 4.00mm |
| Middle Shield | LDPTFE |
| Outer Shield | Silver Plated Copper |
| Jacket | FEP |
| Frequency | 26.5GHz |
| Impedance | 50 ohm |
