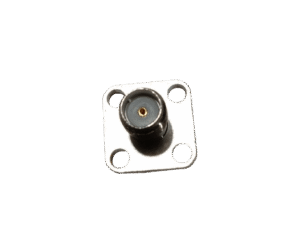

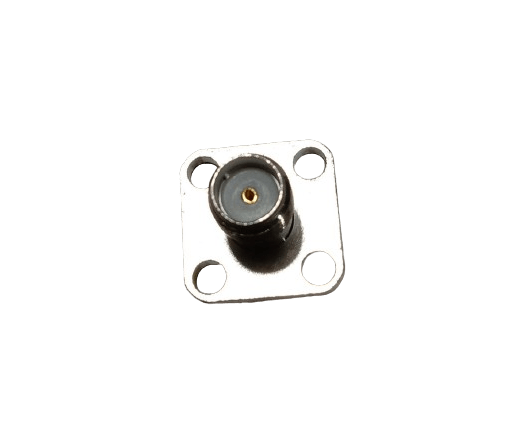

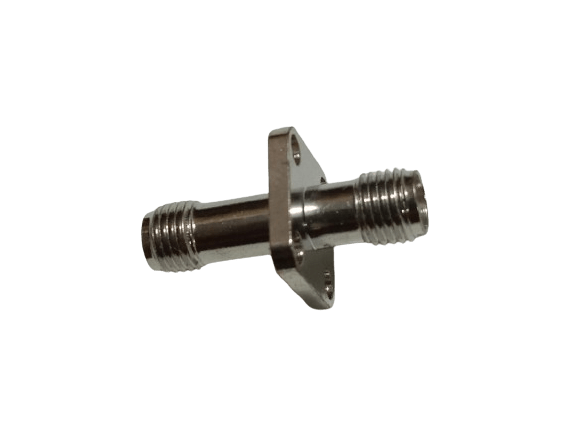

SMA Female to SMA Female Bulkhead Adapter, 4 GHz

Name: SMA Female to SMA Female Bulkhead Adapter, 4 GHz
SKU: 4824
Availability: InStock

Original price was: ₹192.00.Current price is: ₹170.00.

A SMA Female to SMA Female Bulkhead Adapter for passing a signal through a panel. It operates up to 4 GHz and provides a secure, inline connection.

Product successfully added to the Quote List

Category: Adaptor Tags: sma female to sma female 4 hole adaptor, SMA(F) TO SMA(F) 4H ADAPTOR 4GHZ

Description

This SMA female to SMA female bulkhead adapter is designed to provide a reliable, inline connection for passing a signal through a panel or chassis. The bulkhead design secures the adapter in place, preventing rotation and strain on the connection. Rated for frequencies up to 4 GHz, this adapter is commonly used in test equipment, video systems, and communication setups to create a durable and easily accessible external connection point.

Additional information

Brand	RF CONNECTOR HOUSE
Body	Brass SS
Center Conductor	Phosphor Copper
Frequency Range	DC-4GHz
VSWR	1.5
Impedance	50?
Insertiona Loss	=0.10 dB
Insulator	PTFE Teflon
Durability	Mating Cycles =568
