N Female to N Female 4H Adaptor 4 GHz

Original price was: ₹224.00.Current price is: ₹204.00.

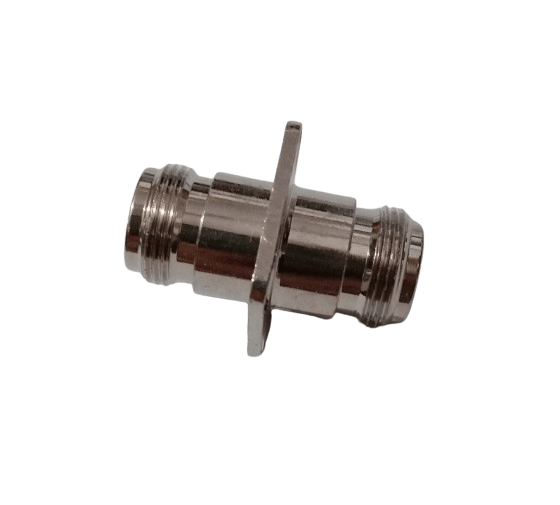

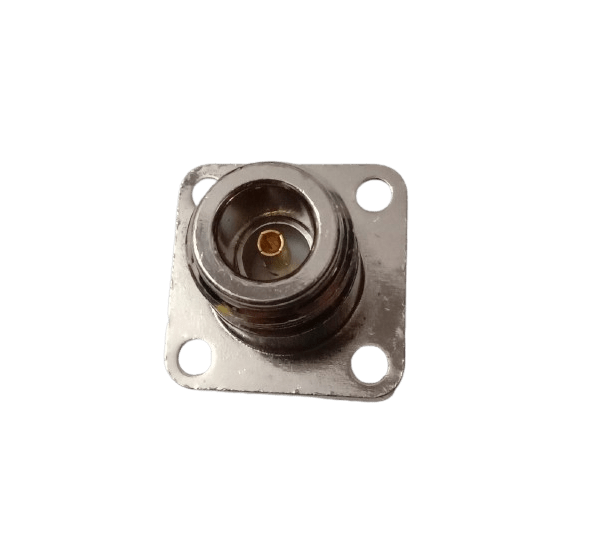

A N Female to N Female 4-Hole Adapter for panel mounting. It operates up to 4 GHz, providing a secure fixed connection.

Description

This N-Type female to N-Type female 4-hole adapter is designed for securely mounting on a chassis or panel using its four-hole flange. It provides a reliable inline connection between two N-Type male cables and is rated for frequencies up to 4 GHz. This adapter is ideal for professional video, broadcast, and data communications where a stable and permanent connection point is needed to pass a signal through an enclosure. The robust design ensures minimal signal loss and long-term durability.

Additional information

Brand

RF CONNECTOR HOUSE

Body

Brass SS

Center Conductor

Phosphor Copper

Frequency Range

DC-4GHz

VSWR

1.5

Impedance

50?

Insertiona Loss

=0.10 dB

Insulator

PTFE Teflon

Durability

Mating Cycles =537
