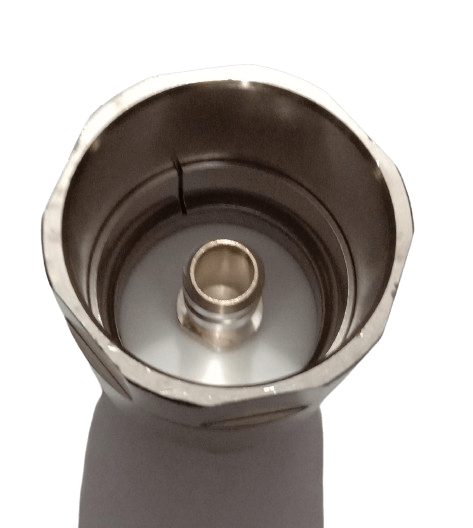

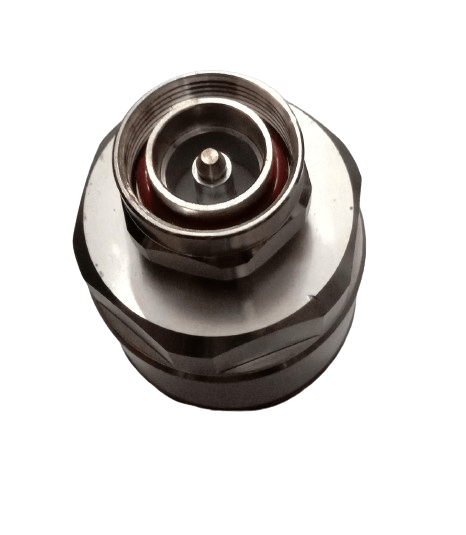

DIN Male Connector for 1-5/8 inch LDF Cable Clamp

Name: DIN Male Connector for 1-5/8 inch LDF Cable Clamp
SKU: 3673
Availability: InStock

Original price was: ₹2,560.00.Current price is: ₹2,284.80.

A heavy-duty DIN male connector for 1-5/8-inch LDF cable. Its robust clamp attachment provides a high-power, secure, and weatherproof termination.

Product successfully added to the Quote List

Category: 7/16 DIN Connector Tags: DIN M 1-5/8" LDF CLAMP, DIN male 1-5/8 LDF clamp

Description

This DIN male coaxial connector is a robust, heavy-duty component designed for terminating large diameter 1-5/8-inch LDF (Low-Density Foam) coaxial cable. The highly durable clamp mechanism ensures a powerful mechanical grip on the cable jacket and outer conductor, providing exceptional strain relief and a reliable electrical ground. This type of termination is essential for high-power applications such as cellular base stations, broadcast systems, and other large-scale communication infrastructure. The clamp-on design simplifies the installation process, making it a reliable and efficient choice for professional field technicians. Manufactured with high-quality, corrosion-resistant materials, it ensures long-term reliability in demanding outdoor environments.

Additional information

Impedance	50O
Frequency	6.5GHz
Dielectric Resistance	=5000MO
Operating Temperature	-40?~+85?
VSWR	1.15:1 (Max)
Contact Resistance	Center Contact =3mO Outer Contact =2.5mO
