TNC Male Connector for LMR400 Cable Clamp

Original price was: ₹84.00.Current price is: ₹73.10.

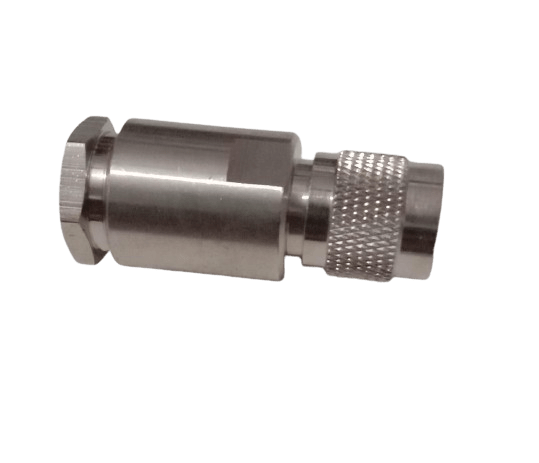

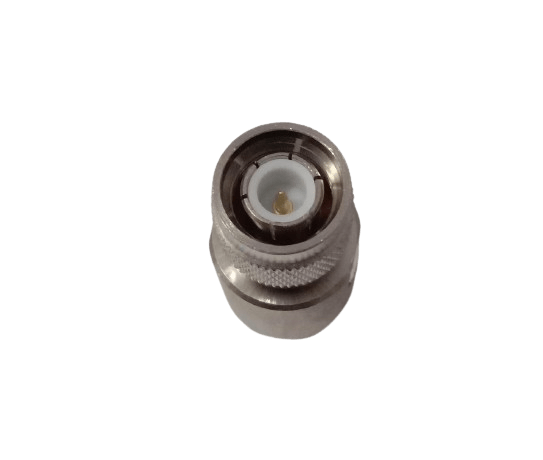

A TNC male connector for LMR400 coaxial cable. Its clamp-on design provides a quick, secure connection for professional RF applications.

Description

This TNC male coaxial connector is designed for the fast and reliable termination of LMR400 coaxial cable. The clamp-on termination simplifies the installation process, making it a highly convenient option for technicians working in the field. By eliminating the need for soldering, it reduces assembly time and the reliance on additional tools. The connector’s design provides a strong mechanical grip on the cable jacket and outer conductor, ensuring a secure and stable electrical ground. It’s a professional-grade component used in a variety of wireless communication applications where flexibility and ease of installation are key considerations.

Additional information

Brand

RF CONNECTOR HOUSE

Material

Brass

finish

Polished

Frequency Range

DC- 3 GHz

VSWR

= 1.15@(0~3GHz)

Dielectric strength

=2500V RMS, at sea level

Dielectric Resistance

= 5000 M ?

Characteristic Impedance

50?

Contact Resistance

Center Contact = 1.0 m ?, Outer Contact = 0.25 m ?
