Original price was: ₹180.00.₹154.70Current price is: ₹154.70.

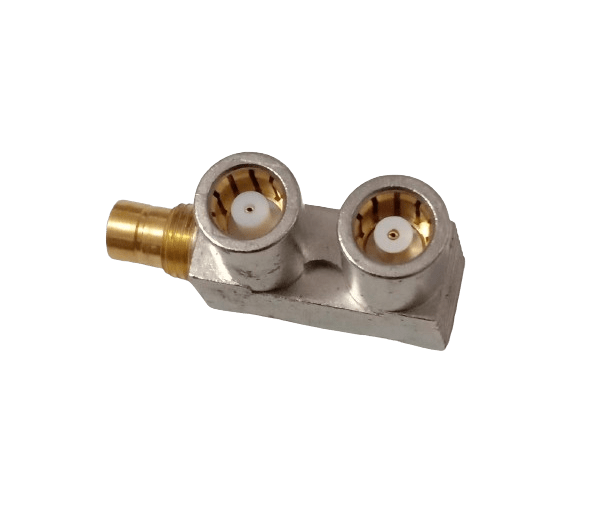

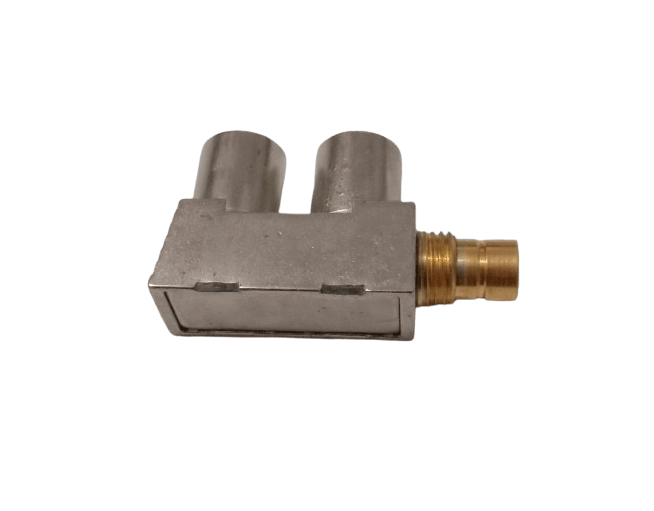

An SMZ Male to Dual Female U-Link Adapter for connecting two SMZ connectors. It provides a secure, inline connection.
This SMZ Male to Dual Female U-Link Adapter is a professional-grade component designed to connect two SMZ connectors. It provides a reliable and low-loss connection, ensuring signal integrity. This adapter is commonly used in various RF applications to extend cable runs. Its durable construction ensures long-term reliability in various operating conditions.
| Brand | RF CONNECTOR HOUSE |
|---|---|
| Material | Brass |
| Characteristic Impedance | 50O |
| Frequency Range | DC-3 GHz |
| VSWR | = 1.15(0~3GHz) |
| Dielectric strength | =750V RMS, at sea level |
| Dielectric Resistance | = 5000 M ? |
| Contact Resistance | Center Contact = 1.0 M ?, Outer Contact =0.25 M? |
| Insertion Loss | = 0.08dB (@2200MHz) |
