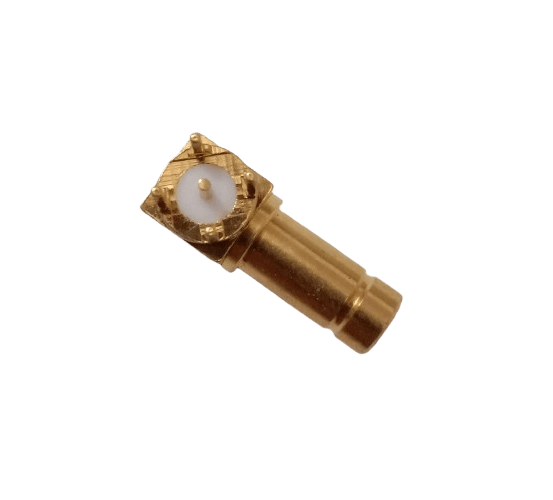

SMZ Male Right Angle Connector, PCB Mount, Solder

-21%

SMZ Male Right Angle Connector, PCB Mount, Solder

Name: SMZ Male Right Angle Connector, PCB Mount, Solder
SKU: 5448
Availability: InStock

Original price was: ₹75.20.Current price is: ₹59.50.

A right angle SMZ male connector designed for through-hole PCB mounting. Its space-saving design is ideal for low-profile electronics.

Product successfully added to the Quote List

Category: SMZ Connector Tags: SMZ M RA PCB SOLDER, SMZ MALE RIGHT ANGLE PCB SOLDER

Description

This SMZ male connector features a right angle form factor and is designed for through-hole soldering onto a printed circuit board (PCB). The right angle orientation is a key feature, making it perfect for applications with limited vertical space or for a cleaner, more organized internal layout. The through-hole design provides a strong and reliable mechanical and electrical bond. It’s an excellent choice for a variety of compact electronic devices, wireless modules, and test equipment.

Additional information

Brand	RF CONNECTOR HOUSE
Material	Brass
Characteristic Impedance	50O
Frequency Range	DC-3 GHz
VSWR	= 1.15(0~3GHz)
Dielectric strength	=750V RMS, at sea level
Dielectric Resistance	= 5000 M ?
Contact Resistance	Center Contact = 1.0 M ?, Outer Contact =0.25 M?
Insertion Loss	= 0.08dB (@2200MHz)
