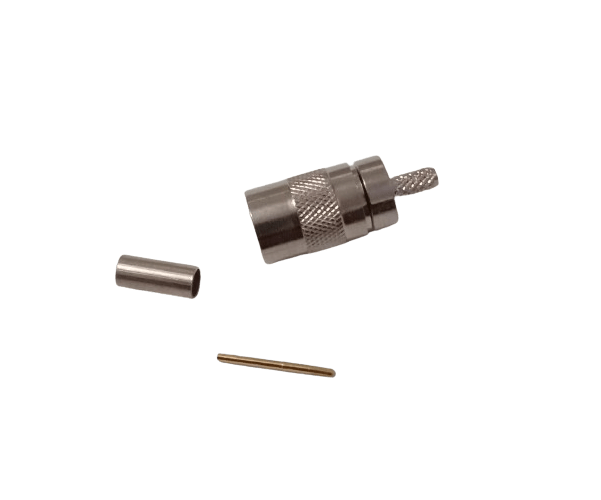

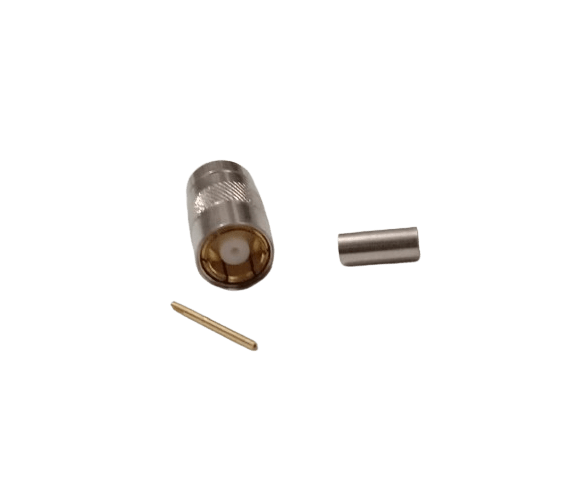

SMZ Female Connector, LMR 100 Crimp

Original price was: ₹56.00.Current price is: ₹39.10.

A standard SMZ female connector for LMR 100 coaxial cable. It uses a crimp termination for a fast and secure assembly, suitable for professional cable assemblies.

Description

This SMZ female coaxial connector is engineered for high-performance, permanent termination of LMR 100 coaxial cable. It utilizes a crimp-style termination, which provides a fast, secure, and permanent electrical and mechanical bond to the cable. Crimp connections are a telecommunication industry standard due to their reliability and ability to withstand vibrations and environmental stress. This connector is an excellent choice for creating durable and dependable cable assemblies for a wide range of RF applications, including wireless networks and telemetry systems where a robust connection is crucial.

Additional information

Brand

RF CONNECTOR HOUSE

Material

Brass

Characteristic Impedance

50O

Frequency Range

DC-3 GHz

VSWR

= 1.15(0~3GHz)

Dielectric strength

=750V RMS, at sea level

Dielectric Resistance

= 5000 M ?

Contact Resistance

Center Contact = 1.0 M ?, Outer Contact =0.25 M?

Insertion Loss

= 0.08dB (@2200MHz)
