SMC Female Right Angle Connector, LMR 200 Crimp

Original price was: ₹68.80.Current price is: ₹52.70.

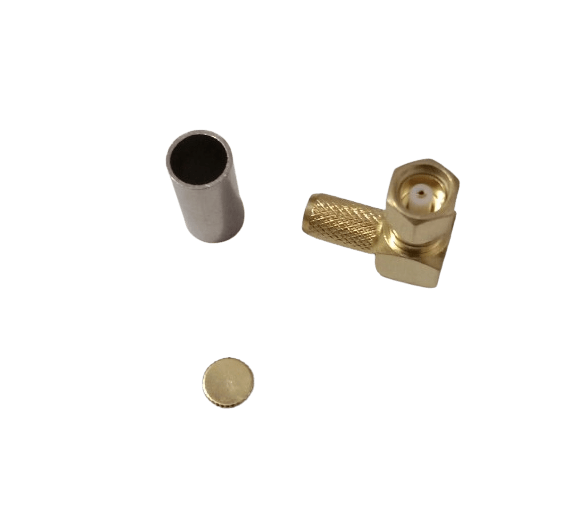

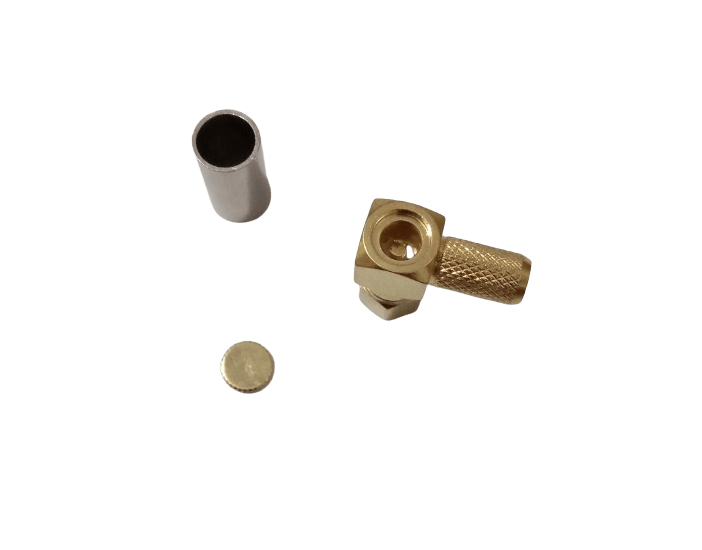

A right angle SMC female connector for LMR 200 coaxial cable. Its space-saving design and crimp termination are ideal for installations with limited space behind the connection point.

Description

This SMC female coaxial connector features a space-saving right angle form factor, making it an ideal solution for installations with limited clearance behind the connection point. It’s compatible with LMR 200 coaxial cable and uses a reliable crimp-style termination to create a fast and permanent electrical and mechanical bond. The combination of its compact design and durable termination makes it perfect for densely packed equipment racks, control panels, and other systems where a clean, low-profile cable routing solution is required without sacrificing performance.

Additional information

Brand

RF CONNECTOR HOUSE

Material

Brass

Characteristic Impedance

50O

Frequency Range

DC-6 GHz

VSWR

= 1.15(0~3GHz)

Dielectric strength

>2500V RMS, 50Hz, At sea Level

Dielectric Resistance

> 5000 M ?

Contact Resistance

Center Contact = 1.0 M ?, Outer Contact =0.25 M?

Insertion Loss

= 0.08dB (@2200MHz)
