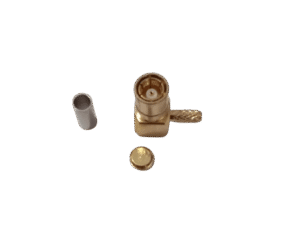

SMB Female Right Angle Connector, LMR 100 Crimp

Name: SMB Female Right Angle Connector, LMR 100 Crimp
SKU: 5376
Availability: InStock

Original price was: ₹56.00.Current price is: ₹52.70.

A standard SMB female connector for LMR 100 coaxial cable. It uses a crimp termination for a fast and secure assembly, suitable for professional cable assemblies.

Product successfully added to the Quote List

Category: SMB Connector Tags: SMB F RA LMR 100 CRIMP, SMB FEMALE RIGHT ANGLE LMR 100 CRIMP

Description

This SMB female coaxial connector is engineered for high-performance, permanent termination of LMR 100 coaxial cable. It utilizes a crimp-style termination, which provides a fast, secure, and permanent electrical and mechanical bond to the cable. Crimp connections are a telecommunication industry standard due to their reliability and ability to withstand vibrations and environmental stress. This connector is an excellent choice for creating durable and dependable cable assemblies for a wide range of RF applications, including wireless networks and telemetry systems where a robust connection is crucial.

Additional information

Brand	RF CONNECTOR HOUSE
Material	Brass
Characteristic Impedance	50O
Frequency Range	DC-3 GHz
VSWR	= 1.15(0~3GHz)
Dielectric strength	=25000V RMS, at sea level
Dielectric Resistance	> 5000 M ?
Contact Resistance	Center Contact = 1.0 M ?, Outer Contact =0.25 M?
Insertion Loss	= 0.08dB (@2200MHz)
