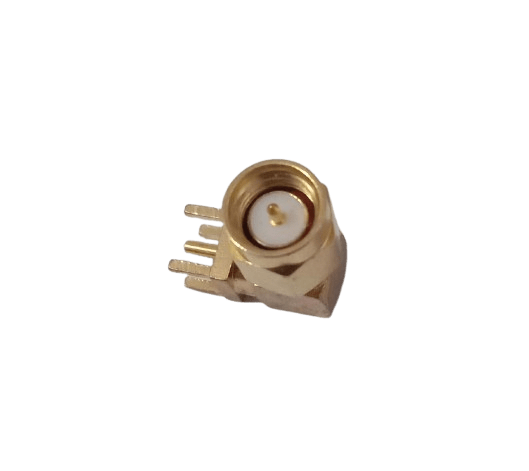

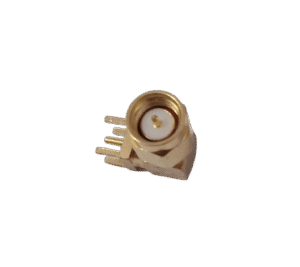

SMA Male Right Angle PCB Solder Connector

Name: SMA Male Right Angle PCB Solder Connector
SKU: 4043
Availability: InStock

Original price was: ₹83.20.Current price is: ₹74.80.

A right angle SMA male connector for through-hole PCB mounting. Its space-saving design is ideal for low-profile electronics.

Product successfully added to the Quote List

Category: SMA Connector Tags: SMA M RA PCB SOLDER, sma male right angle pcb solder

Description

This SMA male connector features a right angle form factor and is designed for through-hole soldering onto a printed circuit board (PCB). The right angle orientation is a key feature, making it perfect for applications with limited vertical space or for a cleaner, more organized internal layout. The through-hole design provides a strong and reliable mechanical and electrical bond. It’s an excellent choice for a variety of compact electronic devices, wireless modules, and test equipment.

Additional information

Brand	RF CONNECTOR HOUSE
Material	Metal
Finish	Polished
Impedance	50O
Frequency	4Ghz
VSWR	1.15:1 (Max)
Dielectric Resistance	=5000MO
Contact Resistance	Center Contact =3mO Outer Contact =2.5mO
Operating Temperature	-40?~+85?
