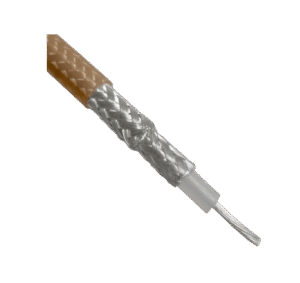

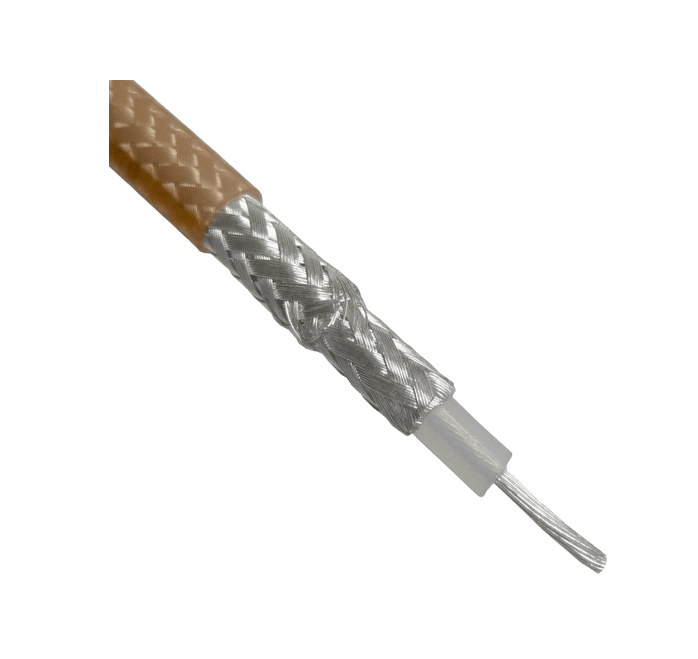

RG 316 Double Shielded Coaxial Cable

Name: RG 316 Double Shielded Coaxial Cable
SKU: 5009
Availability: InStock

Original price was: ₹185.60.Current price is: ₹163.20.

A miniature, double-shielded version of RG 316 coaxial cable, providing enhanced RF isolation and excellent high-frequency performance in a small form factor.

Product successfully added to the Quote List

Category: RG Cables Tags: RG 316 DS CABLE, RG cables, RG ds cables

Description

This RG 316 Double Shielded coaxial cable is an enhanced version of the standard RG 316, featuring an additional layer of braided shield. This double shielding significantly improves the cable’s RF isolation, protecting the signal from external interference and minimizing signal leakage. The cable retains the miniature size and high-temperature resistance of the standard RG 316, making it an excellent choice for sensitive applications in crowded RF environments, such as medical devices, test equipment, and high-performance communication systems.

Additional information

Brand	RF CONNECTOR HOUSE
Type	Coaxial Cable
Color	Brown
Impedance	50O
Inner Conductor	Silver Plated Copper Wire – 7/0.18mm
Dielectric	Solid PTFE – 1.52mm
Outer Shield	silver plated copper wire braiding80*0.10mm
Jacket	FEP Brown – 2.54mm
