Original price was: ₹224.00.₹197.20Current price is: ₹197.20.

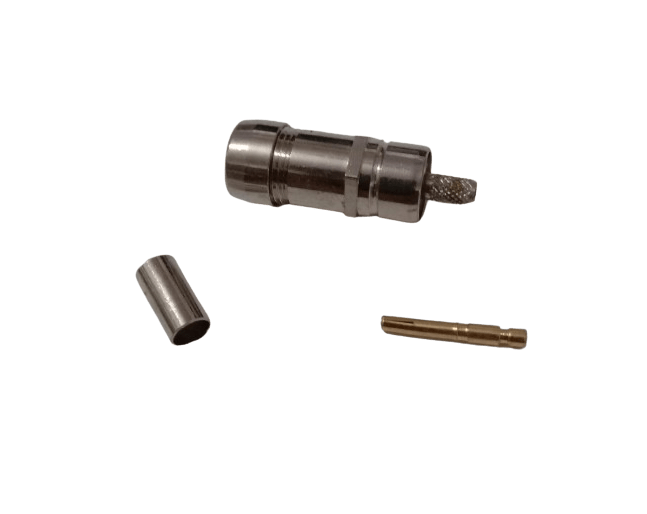

A miniature M4 female connector for BT 3002 coaxial cable. It uses a crimp termination for a secure and permanent bond in compact assemblies.
This M4 female coaxial connector is engineered for high-performance, permanent termination of BT 3002 coaxial cable. The crimp-style termination provides a fast, secure, and durable electrical and mechanical bond to the cable. As a miniature connector, it’s perfect for low-power, high-frequency applications in small-scale electronics and test equipment where a reliable connection is needed within a limited space. The robust construction ensures long-term reliability.
| Brand | RF CONNECTOR HOUSE |
|---|---|
| Material | Brass |
| Characteristic Impedance | 75O |
| Frequency Range | DC-4 GHz |
| VSWR | = 1.23(0~2.2G) |
| Dielectric strength | =25000V RMS, at sea level |
| Dielectric Resistance | = 10000 M ? |
| Insertion Loss | = 0.08dB (@2200MHz) |
| Contact Resistance | Center Contact = 10M ?, Outer Contact = 5M? |
