L9 Type U-Link Adapter

Name: L9 Type U-Link Adapter
SKU: 5250
Availability: InStock

Original price was: ₹224.00.Current price is: ₹197.20.

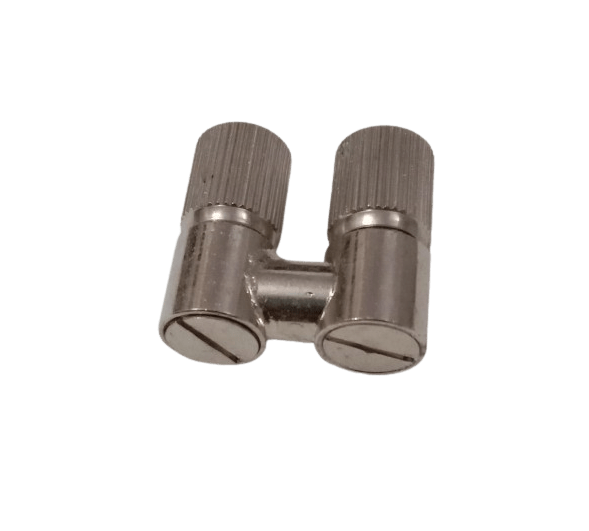

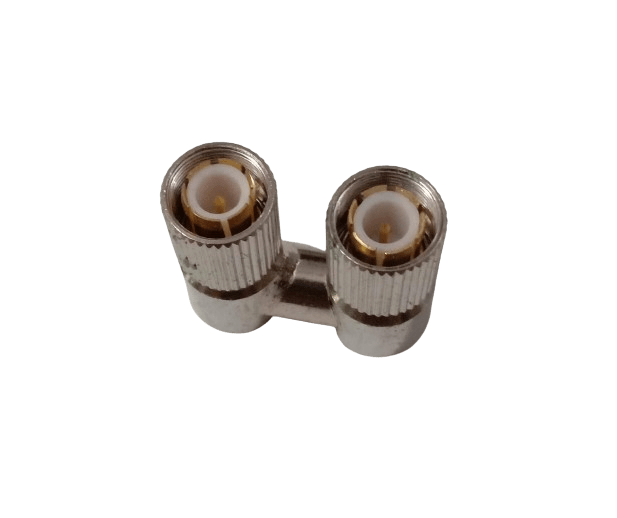

An L9 U-Link adapter for connecting two L9 connectors. It provides a quick and secure inline connection for extending cable runs or creating gender changes.

Product successfully added to the Quote List

Category: LC Connector Tag: L9 TYPE U LINK

Description

This L9 U-Link adapter is a versatile and compact component designed for connecting two L9 connectors of the same gender (e.g., L9 male to L9 male, using two L9 female connectors on the adapter). It is also commonly used to extend a cable run with minimal signal interruption. The durable, all-metal construction ensures a low-loss and reliable connection, while its simple design makes it easy to use without any specialized tools. This adapter is a valuable accessory for any professional working with L9 connectors in communication, broadcast, or testing environments.

Additional information

Brand	RF CONNECTOR HOUSE
Material	Brass
Characteristic Impedance	75O
Frequency Range	DC-4 GHz
VSWR	= 1.23(0~2.2G)
Dielectric strength	=25000V RMS, at sea level
Dielectric Resistance	= 10000 M ?
Insertion Loss	= 0.08dB (@2200MHz)
Contact Resistance	Center Contact = 10M ?, Outer Contact = 5M?
