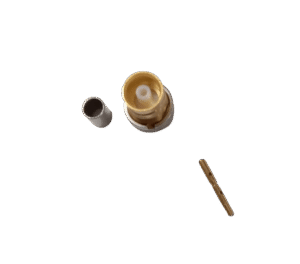

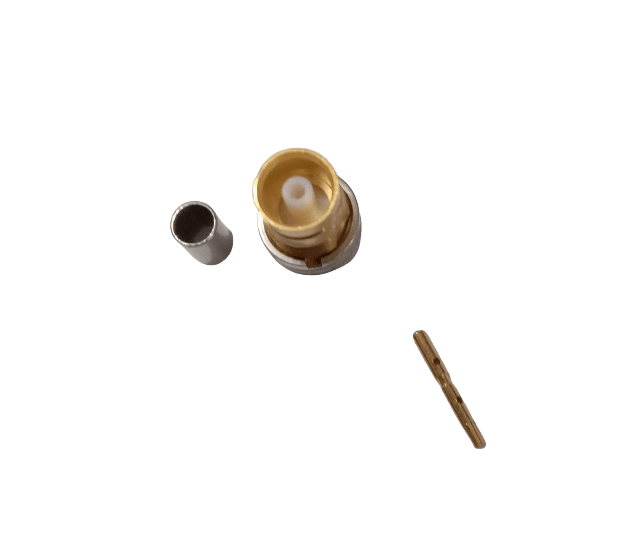

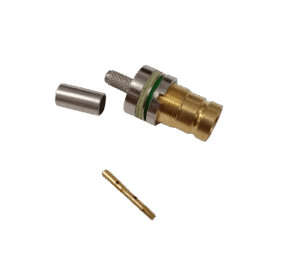

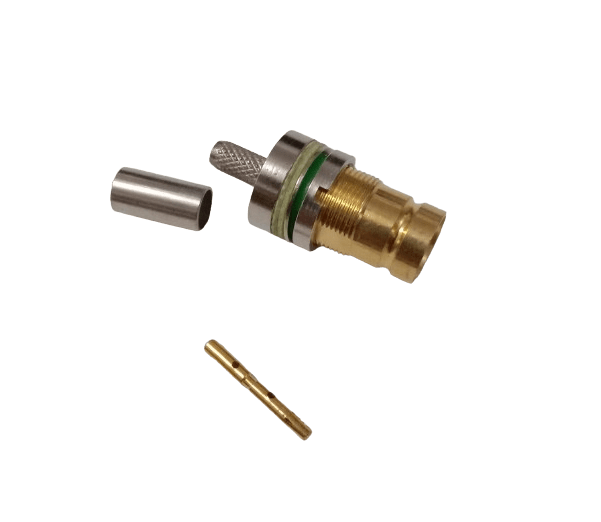

L9 Female Bulkhead Connector, BT 3002 Crimp

Name: L9 Female Bulkhead Connector, BT 3002 Crimp
SKU: 5220
Availability: InStock

Original price was: ₹102.40.Current price is: ₹88.40.

An L9 female bulkhead connector for panel-mounting. It is designed for use with BT 3002 coaxial cable and features a durable crimp termination for a secure and permanent connection.

Product successfully added to the Quote List

Category: LC Connector Tags: L9 F BH BT 3002 CRIMP, L9 female BH BT 3002 crimp

Description

This L9 female bulkhead connector is a professional-grade RF component engineered for secure and permanent mounting on equipment panels, chassis, or enclosures. The bulkhead design allows the connector to pass through a mounting hole, providing a stable external port while protecting internal components. It’s specifically tailored for BT 3002 coaxial cable and utilizes a reliable crimp-style termination. This termination method creates a strong, permanent mechanical and electrical bond to the cable, ensuring minimal signal loss and excellent performance. Ideal for telecommunication, test equipment, and industrial control systems, this connector is a dependable solution where a secure, fixed connection point is essential.

Additional information

Brand	RF CONNECTOR HOUSE
Material	Brass
Characteristic Impedance	75O
Frequency Range	DC-4 GHz
VSWR	= 1.23(0~2.2G)
Dielectric strength	=25000V RMS, at sea level
Dielectric Resistance	= 10000 M ?
Insertion Loss	= 0.08dB (@2200MHz)
Contact Resistance	Center Contact = 10M ?, Outer Contact = 5M?
