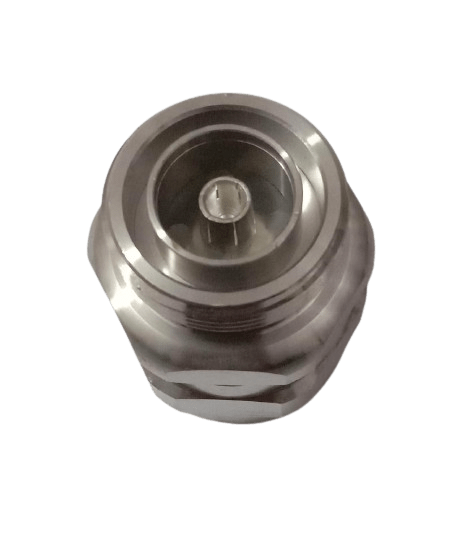

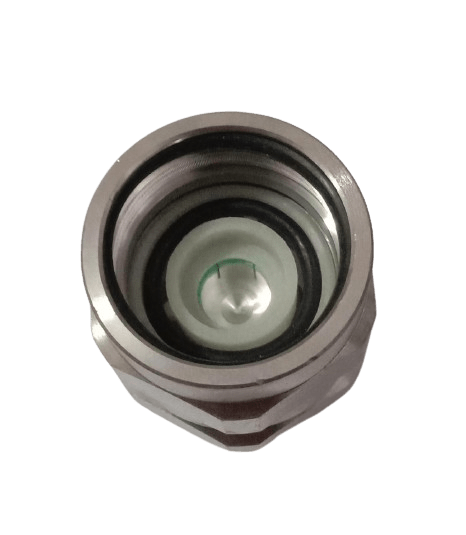

DIN Male Connector for 7/8 inch AL Cable Clamp

Name: DIN Male Connector for 7/8 inch AL Cable Clamp
SKU: 3679
Availability: InStock

Original price was: ₹1,088.00.Current price is: ₹979.20.

A DIN male connector for 7/8-inch aluminum coaxial cable. It features a durable clamp-style attachment for secure, reliable termination.

Product successfully added to the Quote List

Category: 7/16 DIN Connector Tags: DIN M 7/8 AL CLAMP, DIN male 7/8 aluminum clamp

Description

This DIN male coaxial connector is specifically engineered for use with 7/8-inch aluminum coaxial cable. The robust clamp-style termination provides a strong mechanical and electrical connection to the aluminum conductor, which is essential for maintaining performance and preventing corrosion. The clamp-on design allows for fast and straightforward installation in the field, making it an efficient choice for cellular base station installations and other high-power RF applications. It is built from high-quality, corrosion-resistant materials to ensure long-term reliability and performance in various weather conditions.

Additional information

Impedance	50O
Frequency	6.5GHz
Dielectric Resistance	=5000MO
Operating Temperature	-40?~+85?
VSWR	1.15:1 (Max)
Contact Resistance	Center Contact =3mO Outer Contact =2.5mO
