Attenuator 5 dB 1 W F Male/Female 1 GHz

-12%

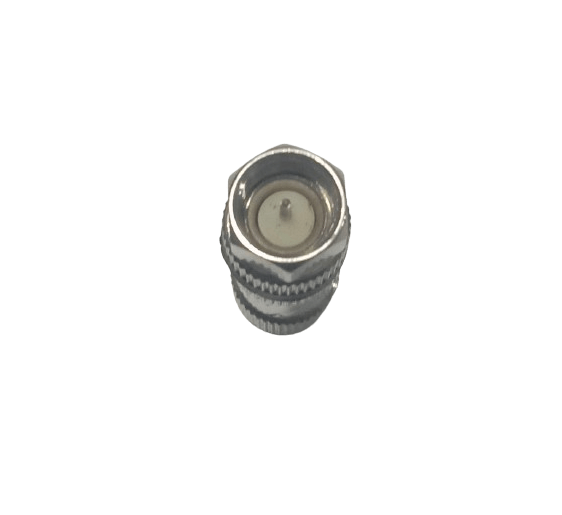

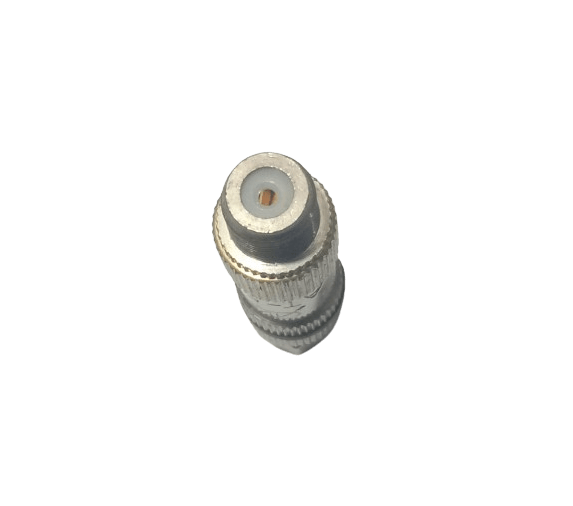

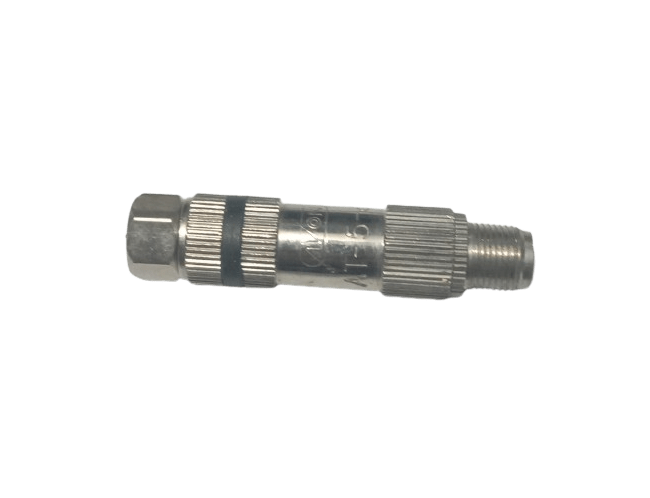

Attenuator 5 dB 1 W F Male/Female 1 GHz

Name: Attenuator 5 dB 1 W F Male/Female 1 GHz
SKU: 4578
Availability: InStock

Original price was: ₹3,712.00.Current price is: ₹3,264.00.

A 5 dB 1 W F-Type attenuator for reducing signal strength by 5 dB. It operates up to 1 GHz and handles up to 1 watt of power.

Product successfully added to the Quote List

Category: Waveguide Fixed Attenuator Tags: ATT 5DB 1W F M/F 1GHZ, att 5db 1w male/female

Description

This 5 dB 1 W F-Type attenuator is a professional-grade component designed to precisely reduce the power of an RF signal. It provides a 5 dB attenuation, which means the signal power is reduced by a factor of 3.16. With a power handling capacity of 1 W and a frequency range of up to 1 GHz, this attenuator is ideal for a variety of low-power applications. The F-Type male to female configuration allows for easy inline installation. This attenuator is an essential tool for protecting sensitive equipment from high-power signals and for adjusting signal levels for optimal system performance.

Additional information

Brand	RF CONNECTOR HOUSE
Max. Power	1W
Impedance	50O
Frequency Range	DC-1GHz
VSWR	= 1.15
Attenuation	5dB
Input Connector	F Male
Output Connector	F Female
Attenuation Accuracy	-110 dBc

Reviews

There are no reviews yet.

Be the first to review “Attenuator 5 dB 1 W F Male/Female 1 GHz”
