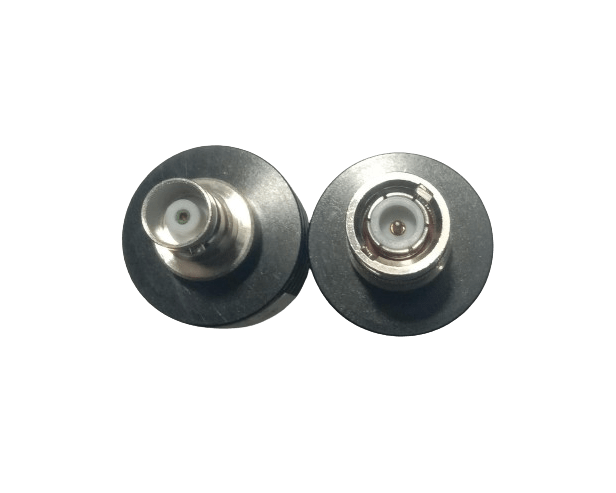

Attenuator 3 dB 10 W BNC Male/Female 3 GHz

Name: Attenuator 3 dB 10 W BNC Male/Female 3 GHz
SKU: 4553
Availability: InStock

Original price was: ₹3,712.00.Current price is: ₹3,264.00.

A 3 dB 10 W BNC attenuator for reducing signal strength by 3 dB. It operates up to 3 GHz and handles up to 10 watts of power.

Product successfully added to the Quote List

Category: Waveguide Fixed Attenuator Tags: ATT 3DB 10W BNC M/F 3Ghz, att 3db 10w bnc male/female

Description

This 3 dB 10 W BNC attenuator is a professional-grade component designed to precisely reduce the power of an RF signal. It provides a 3 dB attenuation, which means the signal power is reduced by a factor of 2. With a power handling capacity of 10 W and a frequency range of up to 3 GHz, this attenuator is ideal for a variety of applications. The BNC male to female configuration allows for easy inline installation. This attenuator is an essential tool for protecting sensitive equipment from high-power signals and for adjusting signal levels for optimal system performance.

Additional information

Brand	RF CONNECTOR HOUSE
Max. Power	10W
Impedance	50O
Frequency Range	DC-3GHz
VSWR	= 1.15
Attenuation	3dB
Input Connector	BNC Male
Output Connector	BNC Female
Attenuation Accuracy	-110 dBc
