Attenuator 15 dB 20 W N Male/Female 3 GHz

Name: Attenuator 15 dB 20 W N Male/Female 3 GHz
SKU: 4492
Availability: InStock

Original price was: ₹3,686.40.Current price is: ₹3,468.00.

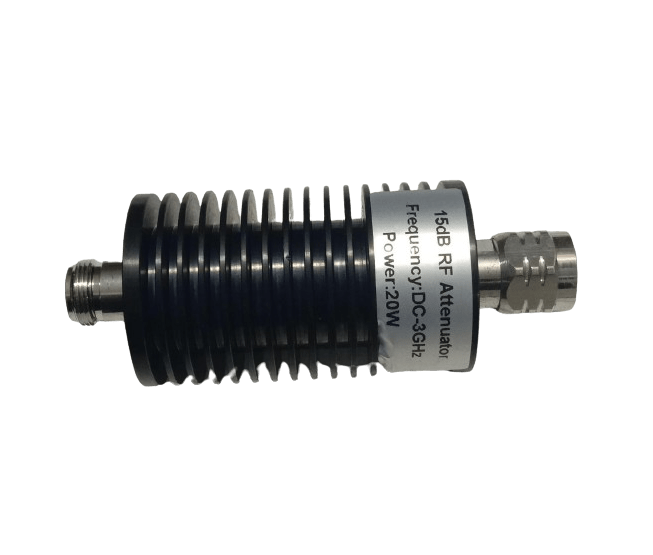

A 15 dB 20 W N-Type attenuator for reducing signal strength by 15 dB. It operates up to 3 GHz and handles up to 20 watts of power.

Product successfully added to the Quote List

Category: Waveguide Fixed Attenuator Tags: ATT 15DB 20W N M/F 3GHZ, att 15db 20w n male/female

Description

This 15 dB 20 W N-Type attenuator is a professional-grade component designed to precisely reduce the power of an RF signal. It provides a 15 dB attenuation, which means the signal power is reduced by a factor of 31.6. With a power handling capacity of 20 W and a frequency range of up to 3 GHz, this attenuator is ideal for a variety of applications. The N-Type male to female configuration allows for easy inline installation. This attenuator is an essential tool for protecting sensitive equipment from high-power signals and for adjusting signal levels for optimal system performance.

Additional information

Brand	RF CONNECTOR HOUSE
Max. Power	20W
Impedance	50O
Frequency Range	DC-3GHz
VSWR	= 1.15
Attenuation	15dB
Input Connector	N Male
Output Connector	N Female
Attenuation Accuracy	-110 dBc
